Configure Custom Fields: Special Control Types

Several Custom Fields: Special Control Types support multi-step configuration when building a custom field in SmartSimple. Create a Special - Button to open a target page in a modal window, a new tab, or the same window. Use a Special - Browser Script to total the values of a dynamic custom field. Configure a Special - Web Page View to append stored PDF documents to its output and generate a PDF automatically. For more information, see Custom Fields: Special Control Types Settings Reference.

Who: Global administrators

When to Use Custom Fields: Special Control Types

Use Special Control Types when:

• A special control field needs behavior beyond its basic settings.
• A Special - Button fits a record that needs a button to open a profile, a grid, or a new record.
• A Special - Browser Script fits a form that must total repeated values.
• PDF attachment and automatic PDF generation fit a Special - Web Page View used to produce documents.

↑ Back to top

Create a Special - Button Custom Field

A Special - Button Custom Field opens a target page in the same window, a new tab, or a modal window when it is activated.

To create a Special - Button Custom Field:

1. Click the Menu icon in the upper navigation bar, and then select the relevant UTA/module from the Applications drop-down menu.
2. Click the Configuration Settings gear.
3. Click the relevant Level 1, Level 2, or Level 3 tab.

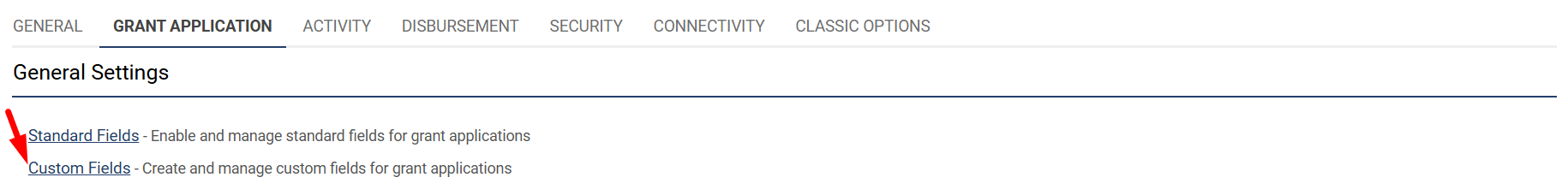

4. Locate the General Settings section and click Custom Fields.
5. Click the New Field [+] button.

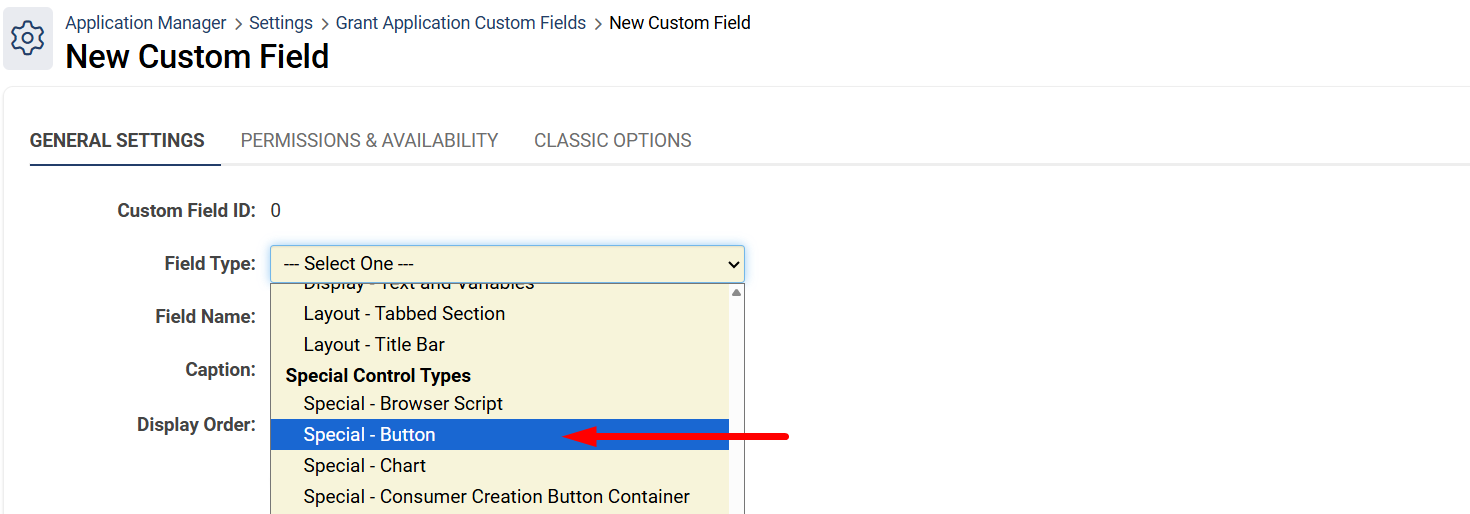

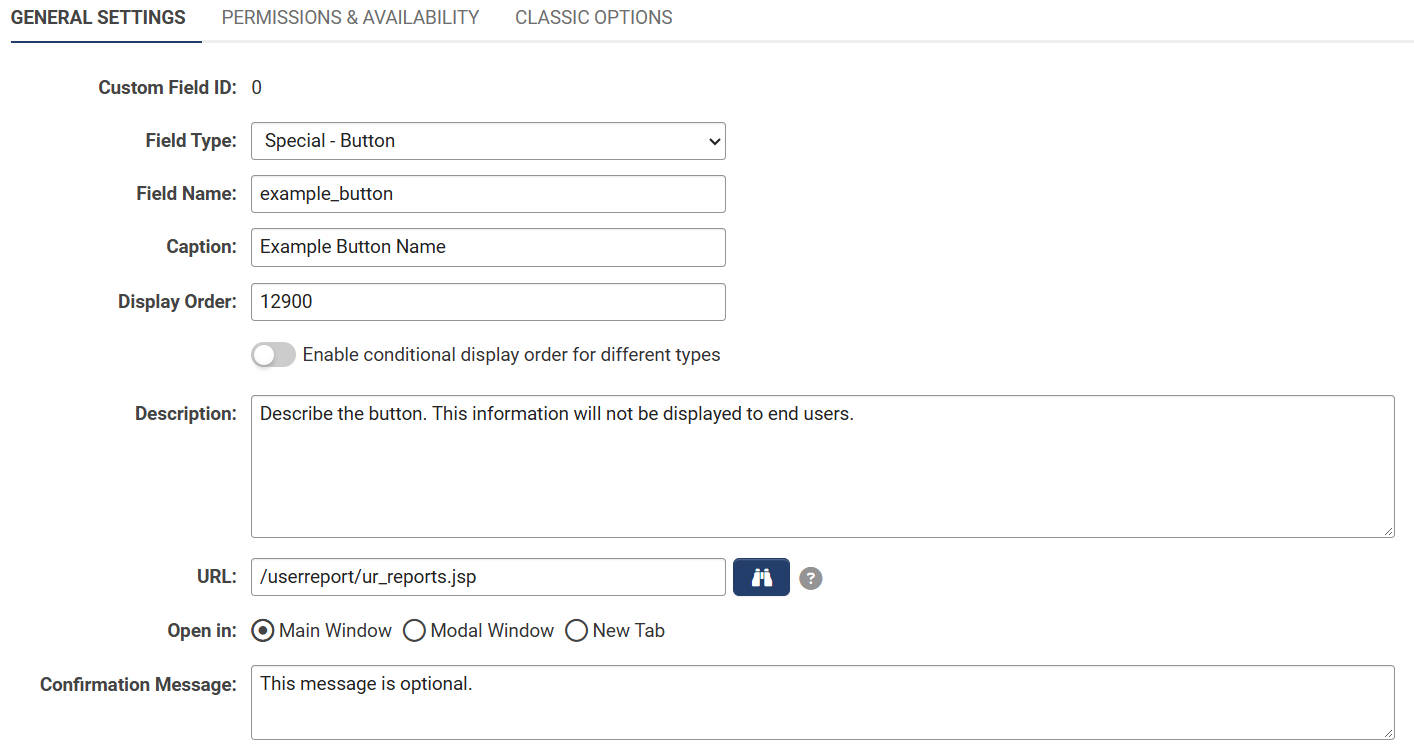

6. Click the Field Type field and select Special - Button from the drop-down menu.
7. Click the Caption field and enter the applicable information.
8. Locate the URL field and click the URL Lookup [binoculars] icon.
9. Locate the Open in field and click the applicable option.
   • Click Main Window to open the object and replace the current content.
   • Click Modal Window to open the object in an overlay above the current content.
   • Click New Tab to open the object in the Tab Bar at the bottom of the page.
10. Click the Confirmation Message field and add text to present a custom message before the target opens.
    • For example, a message is appropriate when the button redirects the user away from a page that may have unsaved changes.
    • This field is optional.

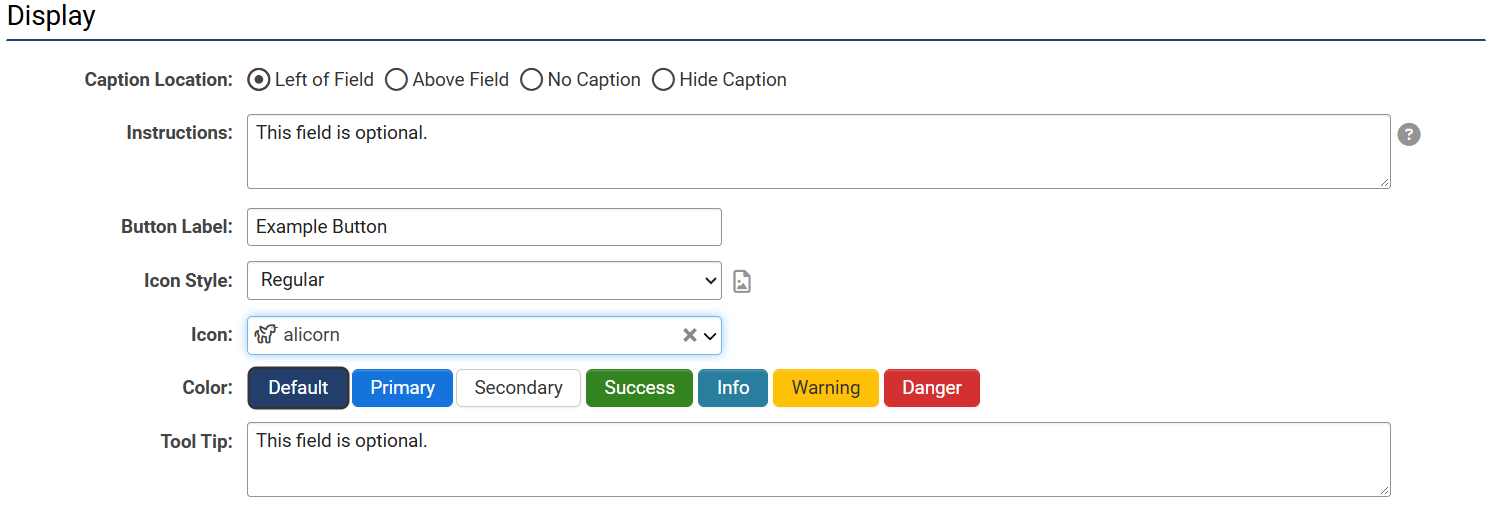

11. Locate the Caption Location field and click the applicable option.
    • Click No Caption to align the button to the left of the record without a caption.
12. Click the Button Label field and add the text to appear on the button.
13. Click the Icon Style field and select a style from the drop-down menu.
    • This field is optional.
14. Click the Icon field and select the applicable icon.
    • Icons are positioned to the left of the button label text.
    • This field is optional.
15. Click the Tool Tip or Instructions field and enter the applicable information to provide additional context.
    • These fields are optional.
16. Click the Permissions & Availability tab and set the applicable permissions, and then click Save.

↑ Back to top

Sum a Dynamic Custom Field with a Special - Browser Script

Summing a dynamic custom field requires three custom fields: a Text Box - Text Single Line field to store the total, a Special - Browser Script field to run the calculation, and the Dynamic Data - Dynamic Control Field being totaled. Place two of the fields before the dynamic custom field, using a smaller display order, and place the third field within the dynamic custom field. For example, if the dynamic custom field has a display order of 2050, the two preceding fields must use a smaller display order, such as 2045 and 2047.

Create a Text Box Field

To create a Text Box - Text Single Line custom field:

1. Click the Menu icon in the upper navigation bar, and then select the relevant UTA/module from the Applications drop-down menu.
2. Click the Configuration Settings gear.
3. Click the relevant Level 1, Level 2, or Level 3 tab.
4. Locate the General Settings section and click Custom Fields.
5. Click the New Field [+] button.

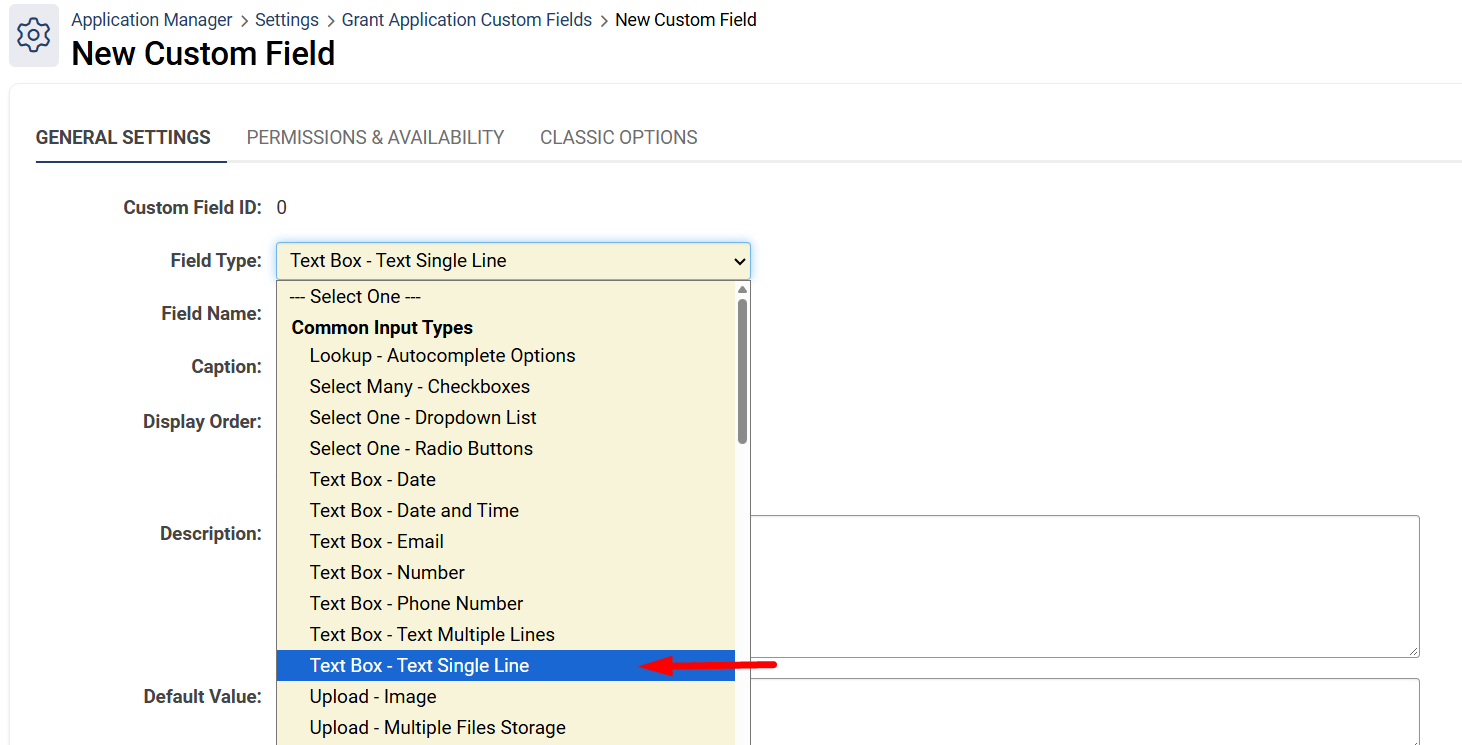

6. Click the Field Type field and select Text Box - Text Single Line from the drop-down menu.
   • This field stores the total. Note its Field ID, which appears in the List View on the Custom Fields page.
7. Complete the applicable fields, and then click Save. See the Special - Browser Script section in Custom Fields: Special Control Types Settings Reference.

↑ Back to top

Create a Special - Browser Script Field

To create a Special - Browser Script custom field:

1. Click the Menu icon in the upper navigation bar, and then select the relevant UTA/module from the Applications drop-down menu.
2. Click the Configuration Settings gear.
3. Click the relevant Level 1, Level 2, or Level 3 tab.
4. Locate the General Settings section and click Custom Fields.
5. Click the New Field [+] button.

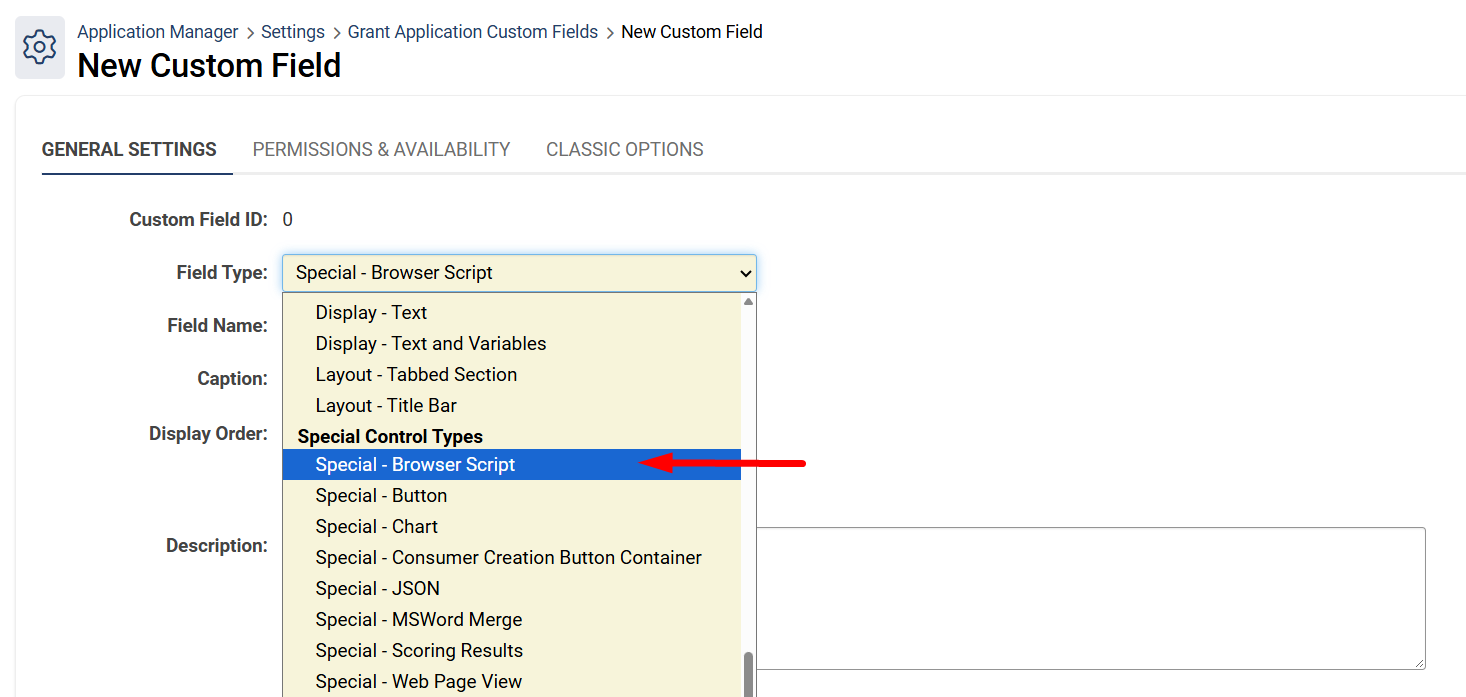

6. Click the Field Type field and select Special - Browser Script from the drop-down menu.
7. Click the Custom Script field and add the following script.
   • Replace xxxxxx with the Field ID of the Text Box - Text Single Line custom field.

//Set the field that stores the total to read only
document.frmevent.cf_xxxxxx.readOnly=true;
//Take the value of the passed in field and add it to the total sum.
function addTotal(valuetxt,index)
{
 // if the index is equal to 1 then reset the sum value to zero
 if (index == 1 )
 document.frmevent.cf_xxxxxx.value=0;
 //update the value
 document.frmevent.cf_xxxxxx.value = parseFloat(document.frmevent.cf_xxxxxx.value) + parseFloat(valuetxt);
}

8. Complete the applicable fields, and then click Save. See the Special - Browser Script section in Custom Fields: Special Control Types Settings Reference.

↑ Back to top

Edit the Dynamic Data - Dynamic Control Field

To edit the Dynamic Data - Dynamic Control Field:

1. Click the edit [pencil] icon next to the Dynamic Data - Dynamic Control Field.
2. Create a new sub field, click the Field Type field, and then select Special - Browser Script.
3. Click the Custom Script field and add the following script.
   • Replace xxxxx1 with the Field ID of the dynamic custom field, and replace xxxxx2 and xxxxx3 with the Field IDs of the fields to total.

var expenseCF = new Array('cf_xxxxx1', 'cf_xxxxx2', 'cf_xxxxx3');
var i = 0;
var number = eval("document.frmevent."+ expenseCF[0] + ".value;");
number = parseInt(number);
for (i = 1; i <= number; i++)
{
 var valuetxt = eval("document.frmevent."+ expenseCF[i] + ".value;");
 if (valuetxt != undefined)
 { //Call the function addTotal so that it adds the sum together
 addTotal(valuetxt,i);
 }
}

↑ Back to top

Attach PDFs to a Web Page View Output

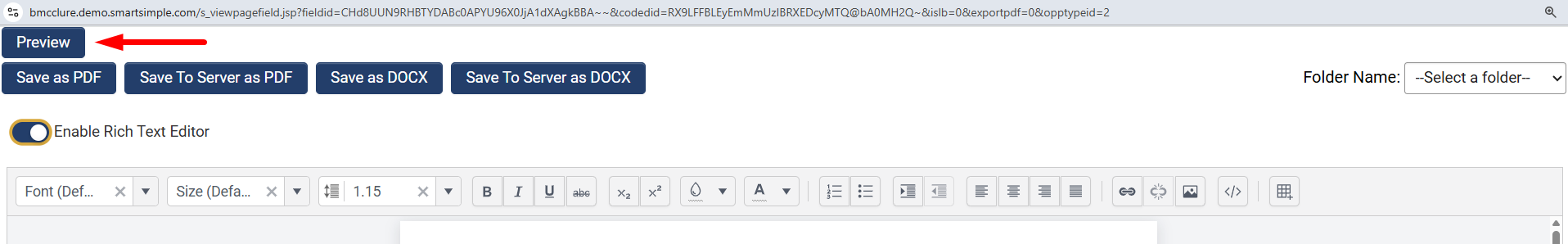

A Special - Web Page View can append one or more PDF documents, stored in a file field or SmartFolder, to its output using ssattach. Attached PDFs appear only when the output is generated as a PDF, and they do not appear in HTML preview mode.

To attach a PDF to the output:

1. Click the Menu icon in the upper navigation bar, and then select the relevant UTA/module from the Applications drop-down menu.
2. Click the Configuration Settings gear.
3. Click the relevant Level 1, Level 2, or Level 3 tab.
4. Locate the General Settings section and click Custom Fields.
5. Click the New Field [+] button.

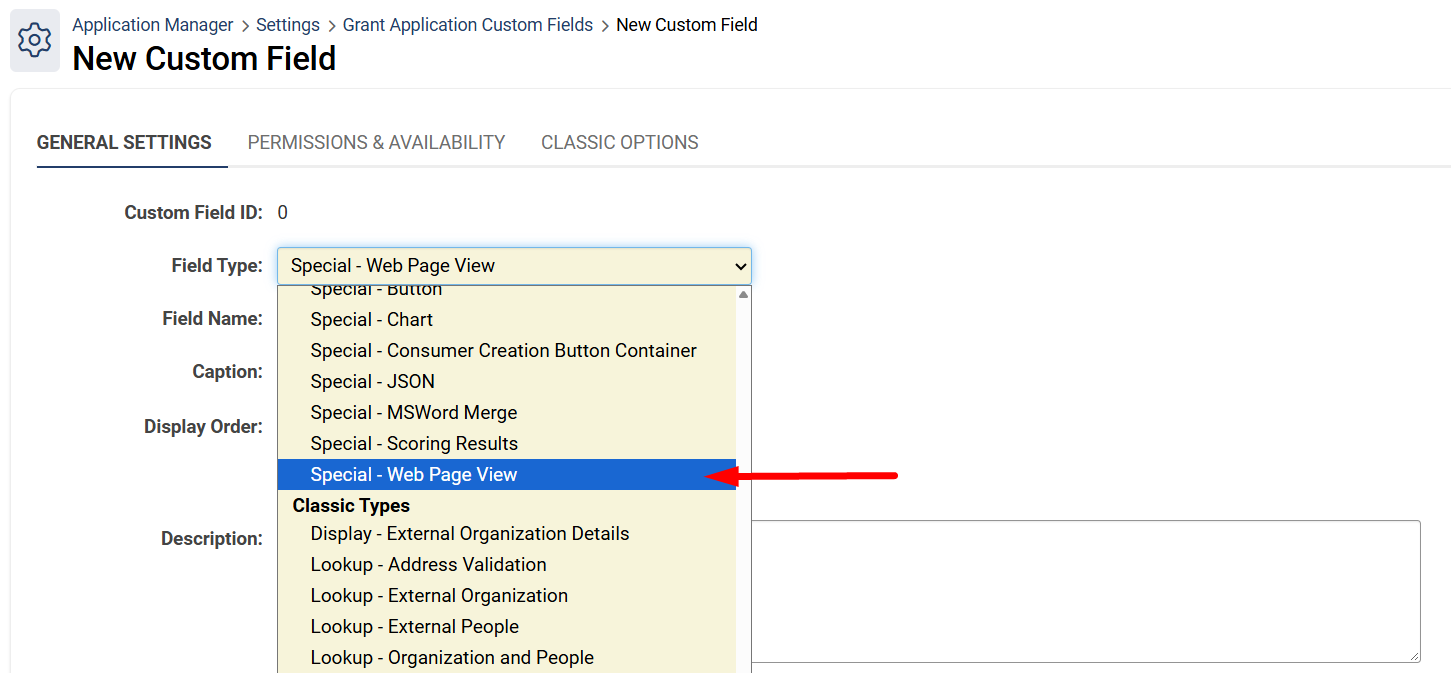

6. Click the Field Type field and select Special - Web Page View from the drop-down menu.
7. Locate the HTML Template field and click SmartFields Sample Template.
   • Add an ssattach tag where the PDF should appear, setting the position to before or after and the location to a Smart Folder path, a single file custom field, a multiple files custom field, or a parent field reference.
8. Complete the remaining applicable fields, and then click Save. See the Special - Web Page View section in Custom Fields: Special Control Types Settings Reference.

For example, the following tag appends a Smart Folder PDF before the Web Page View content:

<!--@ssattach(before;/files/1234/123/myfile.pdf)-->

The following tag appends a PDF from a single file custom field named AttachPDFFile:

<!--@ssattach(before;@AttachPDFFile.value@)-->

↑ Back to top

Generate PDF Output Automatically from a Web Page View

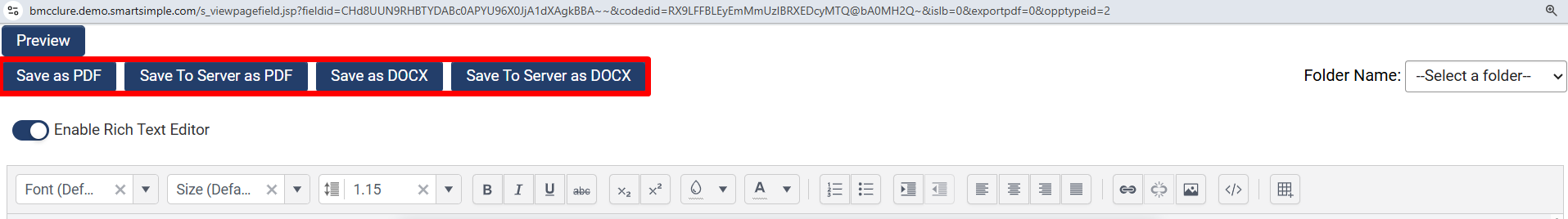

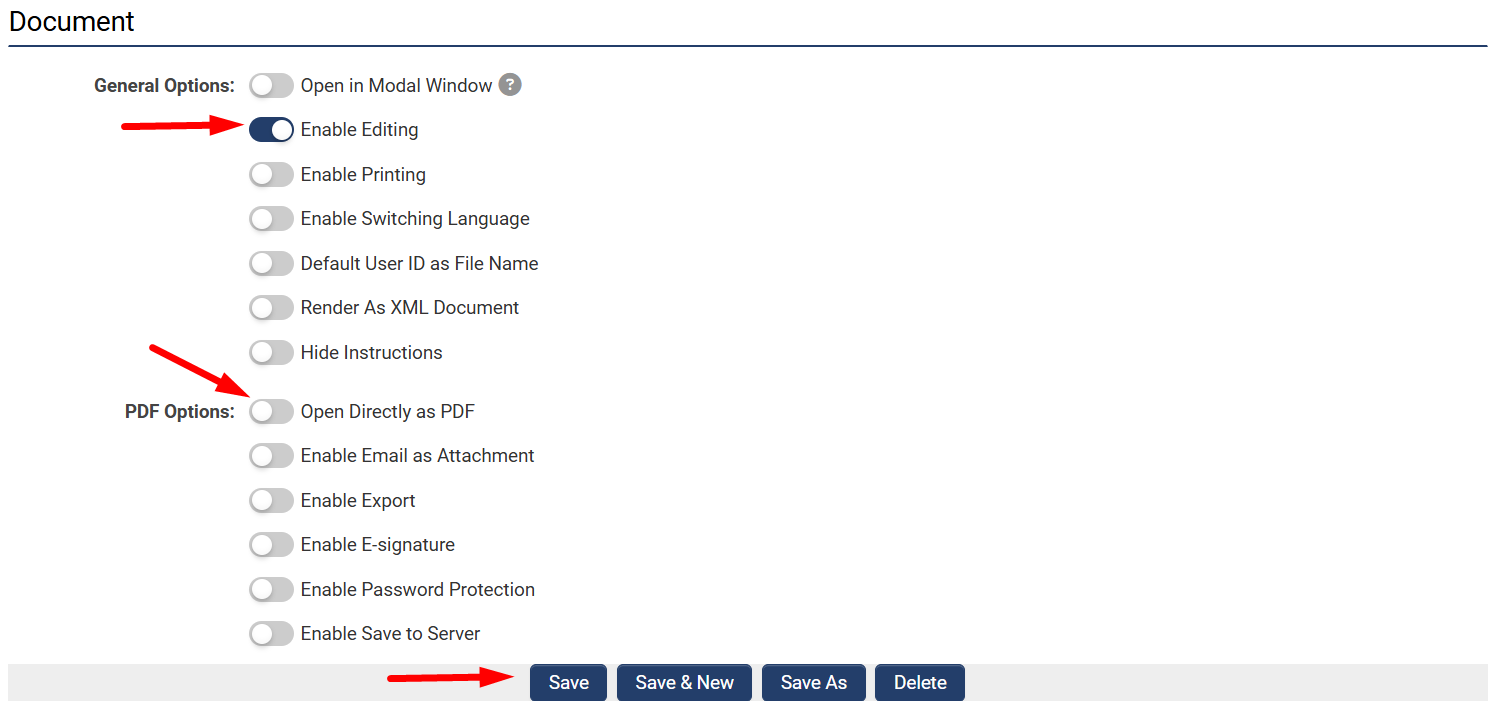

A Special - Web Page View can generate PDF output without the user clicking Export as PDF.

To generate PDF output automatically:

1. Click the Menu icon in the upper navigation bar, and then select the relevant UTA/module from the Applications drop-down menu.
2. Click the Configuration Settings gear.
3. Click the relevant Level 1, Level 2, or Level 3 tab.
4. Locate the General Settings section and click Custom Fields.
5. Click the New Field [+] button.
6. Click the Field Type field and select Special - Web Page View from the drop-down menu.
7. Locate the HTML Template field and click SmartFields Sample Template.
8. Add the following script at the end of the source.

<script language="javascript">
parent.pdfwrite();
</script>

9. Complete the remaining applicable fields, and then click Save. See the Special - Web Page View section in Custom Fields: Special Control Types Settings Reference.
